Quick Details

  • Condition: New
  • Type: Raymond Mill
  • Motor Type: AC Motor
  • Power(W): 50KW
  • Capacity(t/h): 1.2-4.6
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TYM
  • Model Number: YGM85
  • Dimension(L*W*H): 18x4.6x9.6m
  • Weight: 2-45tons
  • Certification: ISO9001:2008
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • model1: YGM95
  • Model: clinker grinder
  • brand: TYM
  • capacity: 1.2-4.6t/h
  • state: new
  • certificate: ISO 9001:2000

Packaging & Delivery

Packaging Details container
Delivery Time Shipped in 15 days after payment
Product Description

The most popular Raymond Mill/Grinding Mill/Grinder/Pulverizer/Powder Making Machine price

This Grinding Mill is mainly used to pulverize various nonflammable and unexplosive materials less than 9.3-scale Moh’s hardness and 6% humidity, in the industries of glass, rubber, pesticide, ceramic, paint, phosphate fertilizer and paper-making etc. These materials include pencil stone, barite calcite, limestone, marble, manganese ore, iron ore, clay, feldspar, bolus alba, bentonite and so on.

This Grinding Mill has high yield, wide application, small power consumption, easy operation and steady performance, which make it become the ideal equipment of pulverizing industry.

Rymond Mill Feathers of raymond mill
1. The whole mill is of spatial structure , less premise and systemic strong. The whole system from roughing, transportation, powder collecting to packaging forms a independent production system.

2. Even granularity, sieving rate 99%, which is unapproachable for other mills.

3. The driving device applies inclosed gear box and belt pulley, so the transmission is calm and the operation is reliable.

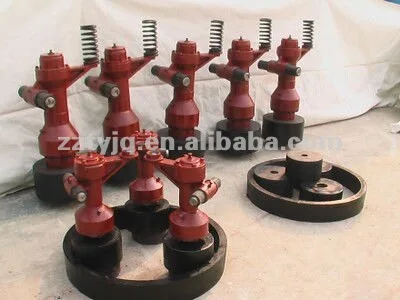

4. All the main parts of Raymond Mill adopt high quality steel, the resistant parts use high-performance proof materials, so the whole system has high wear resistance and reliable performance. The blade frame of the main machine keeps in touch with the materials , it is consisted of the upper part and lower part, when the lower part is worn down ,just take down the bolts to exchange it.

5. Centralized controlling of the electrical system, unmanned operation , easy maintenance.

6. Less dust pollution, low noise.

7. Adopting electro-vibrating feeder , it can feed evenly and is easy to adjust, features miniature size, light in weight, power saving and easy maintenance.

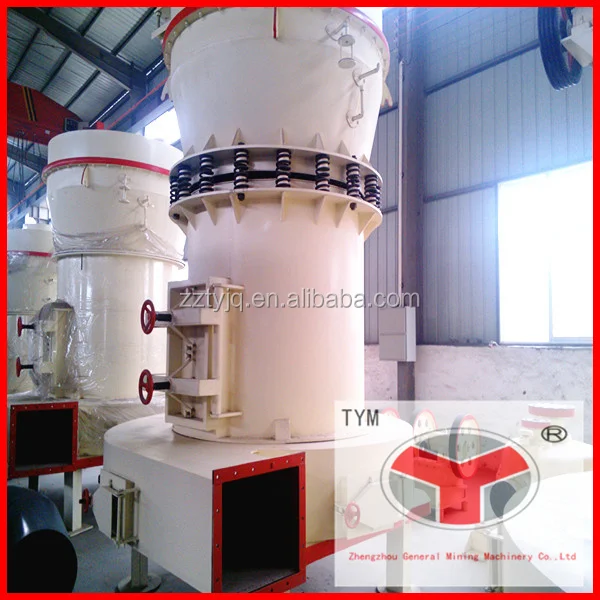

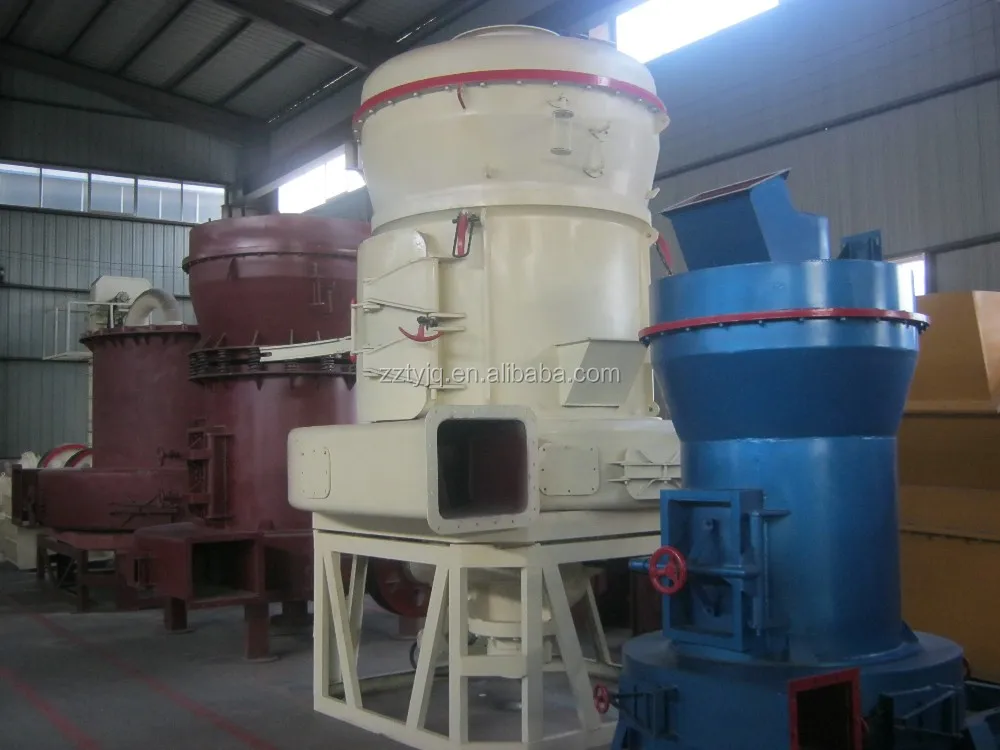

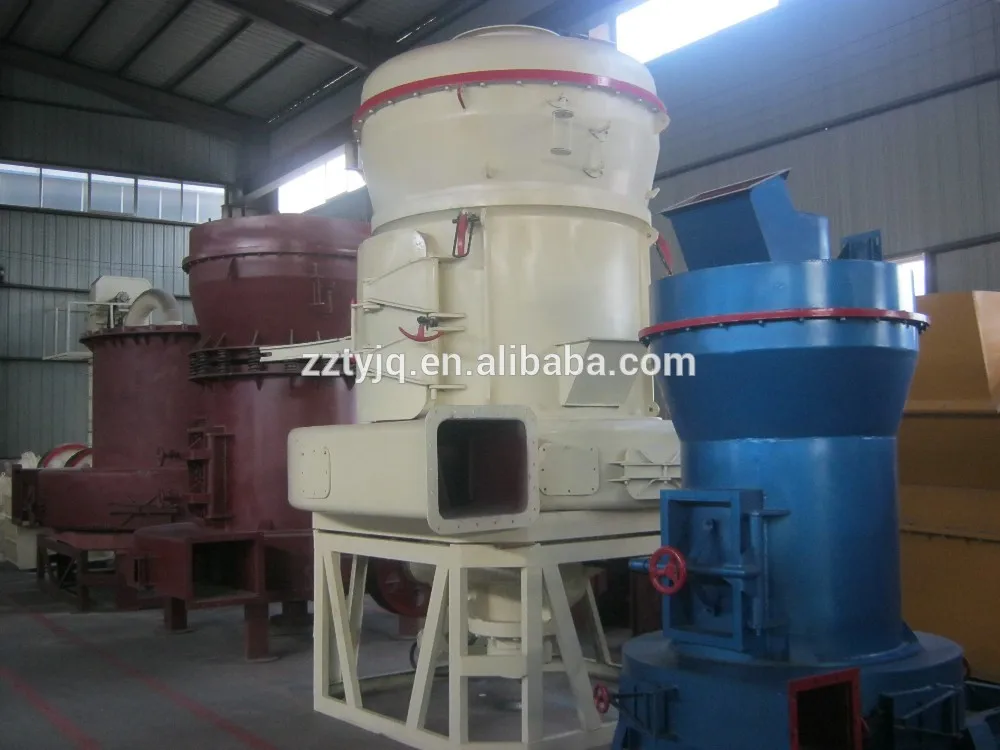

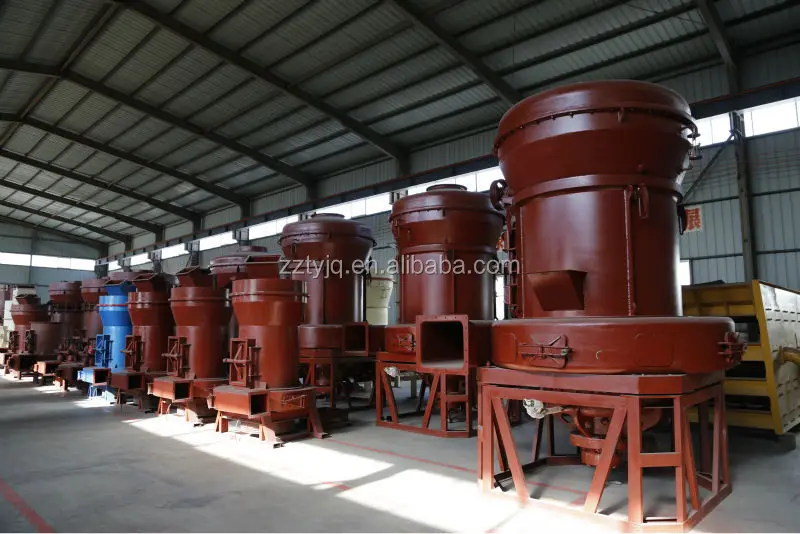

Detailed Images

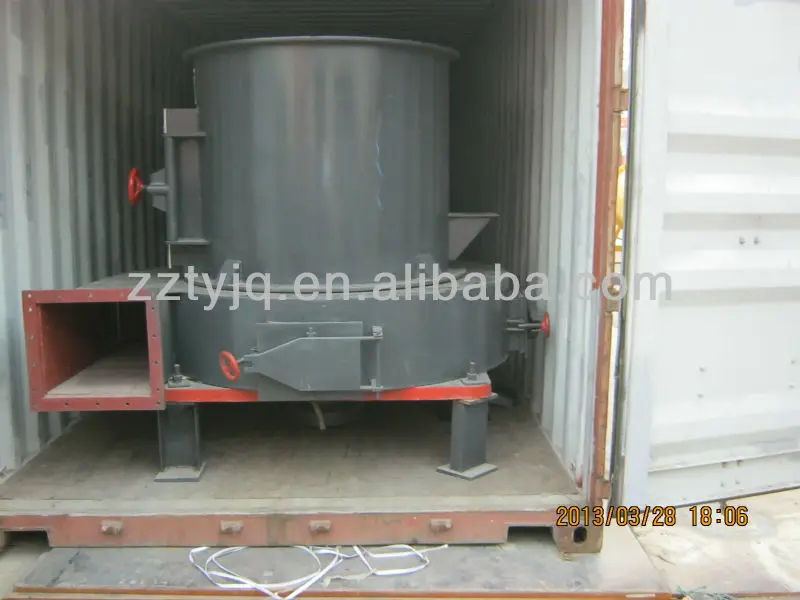

Packing & Delivery
Product Description

MTW175 and MTW138 European type limestone/gypsum grinding mill with 20-30tph capacity introducion

MTW138 European Mill / Grinding Mill / Powder Mill is Also choice for nonflammable and non-explosive minerals of which Moh’s hardness is less than 9.3, moisture content is less than 6%, for example: quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, Zircon, slag, granulating slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum, graphite.

MTW175 and MTW138 European type limestone/gypsum grinding mill with 20-30tph capacity Application

Aluminum powder grinding mill , limestone grinding mill , gypsum grinding mill is suitable in grinding limestone,ceromic,coking coaland so on.it is mainly applied to the power processing of mineral products in the industries of mining,metallurgy,constrution materials and chemicl materials ect more than 280 kinds of high finesse power grinded,and the final product size can be adjusted as requied in the rang of 80-425meshes(even til 1000meshes).

MTW175 and MTW138 European type limestone/gypsum grinding mill with 20-30tph capacity working principle

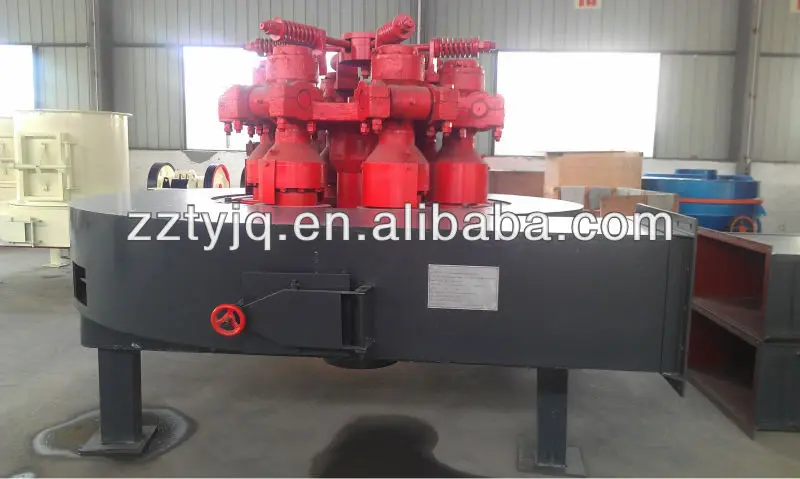

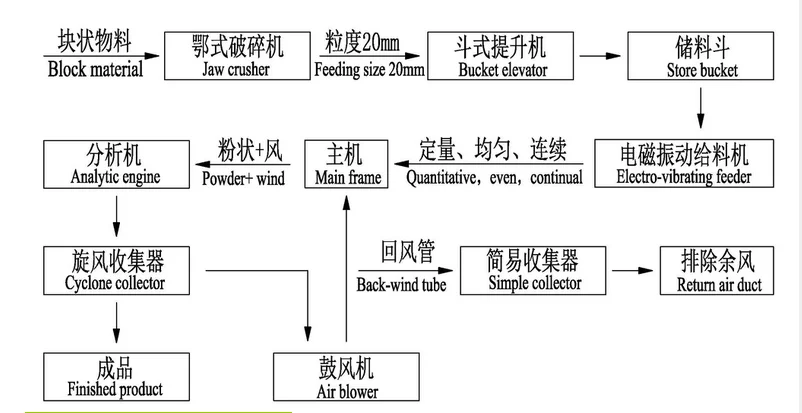

Firstly, raw material is crushed by jaw crusher to the size required, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind. After this, the ground stuff is carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The airflow system is closely sealed up and circulated under condition of negative and positive pressure.

MTW175 and MTW138 European type limestone/gypsum grinding mill with 20-30tph capacity features


1. The Mining Processing grinder is featured by vertical structure, small floor area, and strong system. It is an independent production system from the primary process of raw materials to powder making and packaging.
2. The screening rate is up to 99% compared to other mills.
3. The transmission of the machine adopts confined gear box and pulley which guarantees stable transmission and reliable operation.
4. The key parts are all made of high-quality casting and section bars with exquisite craftwork which guarantees the duration of the whole equipment.
5. The electrical system uses centralized control with advanced and reasonable selection and high automatization.

Model Specification Name
MTW110
MTW138
MTW175
MTW215
Quantity of roller (PCS)
4
4
5
5
Inner diameter of ring (mm)
1100
1380
1750
2150
Rotary speed of main frame(r/min)
120
96
75
65
Max. Feeding size(mm)
< 30
< 35
< 40
<50
Output size (mm)
1.6~0.045

fineness is 0.038

1.6~0.045

fineness is 0.038
1.6~0.045

fineness is 0.038
1.6~0.045

fineness is 0.038
capacity (t/h)
3.5~10
6.5~15
11~25
20-50
Overall dimension (mm)
8910×6950×9010
10920×9655×10227
12095×10023×9916
14500x11200x10400
Total weight (t)
18
28.5
46
96
Related Products

if you are interesting anyone please click the above pictures , checking the specification information .And don't forget to contact me

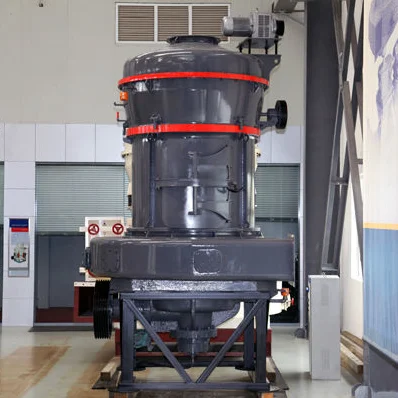

Detailed Images
