Quick Details

  • Condition: New
  • Type: Ball Mill, Small type
  • Motor Type: AC Motor
  • Power(W): 50KW
  • Capacity(t/h): 0.65-80 t/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TYM
  • Model Number: in details
  • Dimension(L*W*H): M) Dimension
  • Weight: 34t~60T
  • Certification: ISO9001:2008
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certificate: ISO 9001:2000, SGS
  • Brand: TYM
  • Color: Red, White, Various.
  • Capacity ( t/h ): 0.65-80 t/h
  • motor power(kw): 18.5-430KW
  • feeding size(mm): <20-25mm
  • discharging size(mm): 0.075-0.4mm
  • shell rotation speed(r/min): 36-38

Packaging & Delivery

Packaging Details 20GP, 40GP Container, International packaging standard, as customer's requirement.
Delivery Time Shipped in 10 days after payment
Product Description

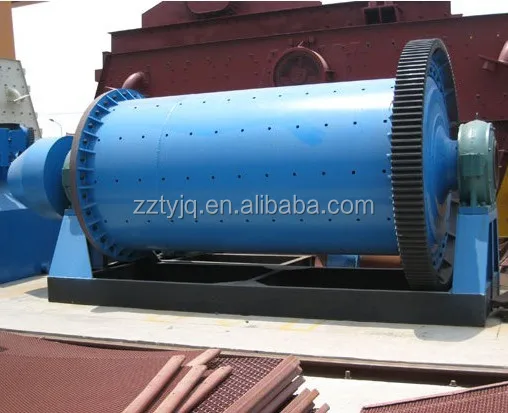

grinding rock ball mill of introduction

Ball Mill is a critical pulverizing machine after material was broken.This machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole. So when fix, it can be located on a plane surface only once. Use double tier roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. Ball mill is wiidely used in cement, portland,products, new building materials, refractory material, fertilizer, ferrous and nonferrous metal dressing, and glass ceramics production ndustry for wet and dry grinding of various ores and grindable materials, chemical and other materials. It is classified into wet and dry type. Our ball mill change the way of diischarging material, which can improve the milling of the granule, and make the capacity increase 15~20%.

Detailed Images

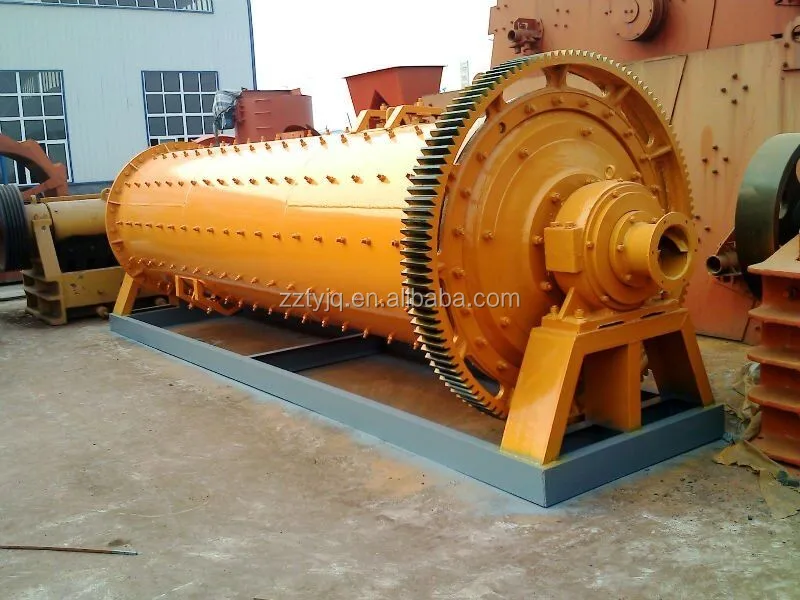

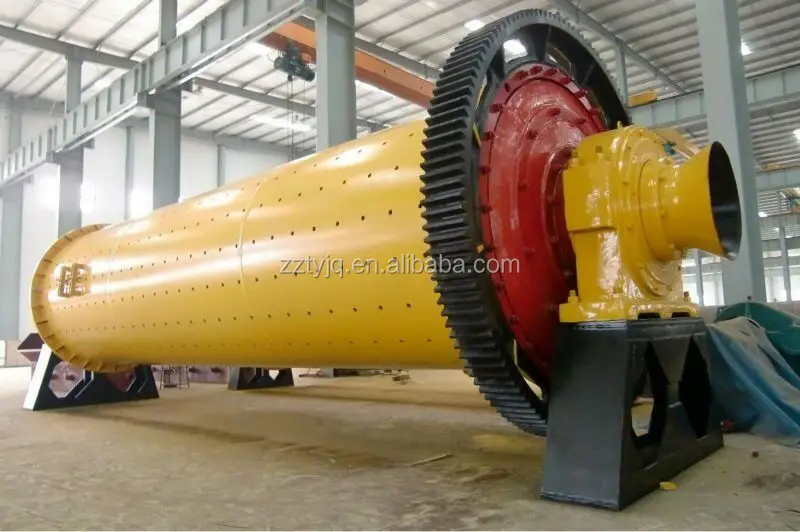

Ball Mill Machine — Feature

1) The transmission machinery of grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%

2) Adopt groove-type circular lining plate which is instrumental in increasing contact areas of iron balls and ores, and enhances grinding action and ore lifting capacity and decreases energy consumption.

3) Adopt overall frame, which makes it easy for construction and installation.

4) Large discharge opening, high capacity .

5) Equipped with oil-mist lubrication device which guarantees smooth operation of gears.

6) long servise life, and low consumption.

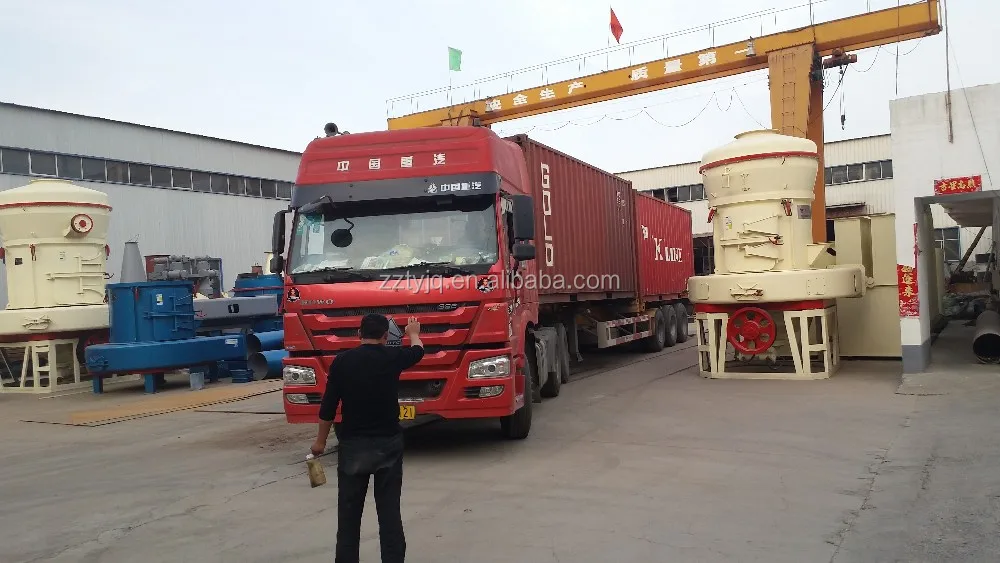

Packing & Delivery

Packaging Details: wooden

Delivery Detail: within 7 days

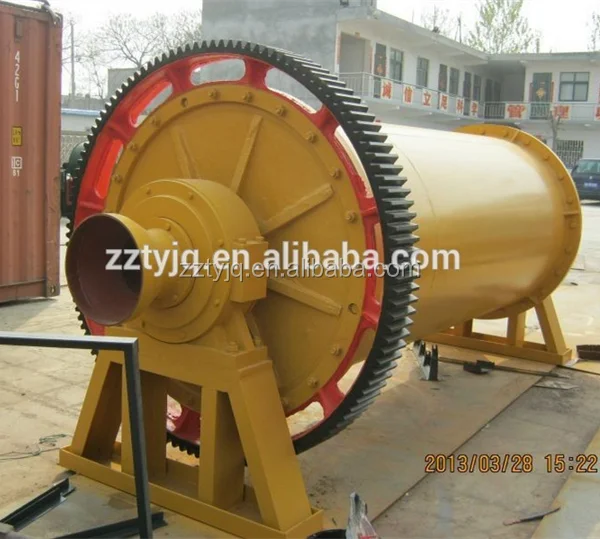

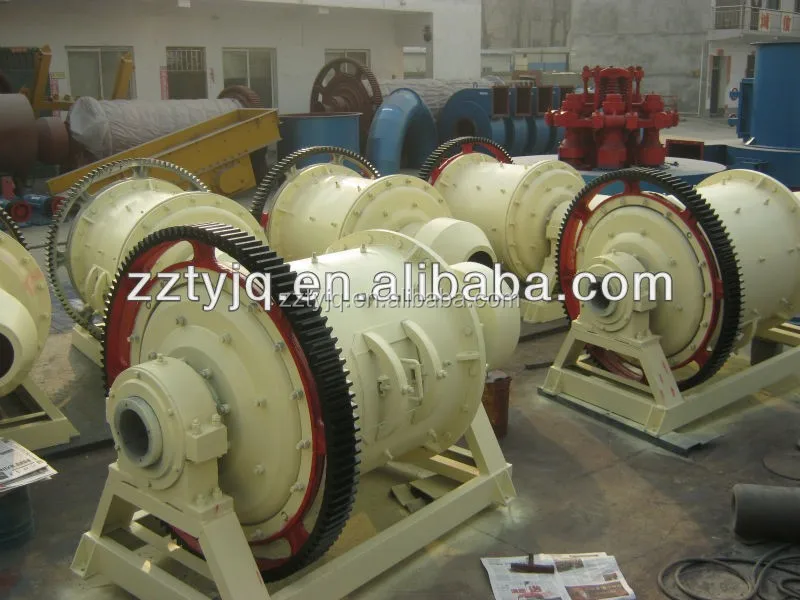

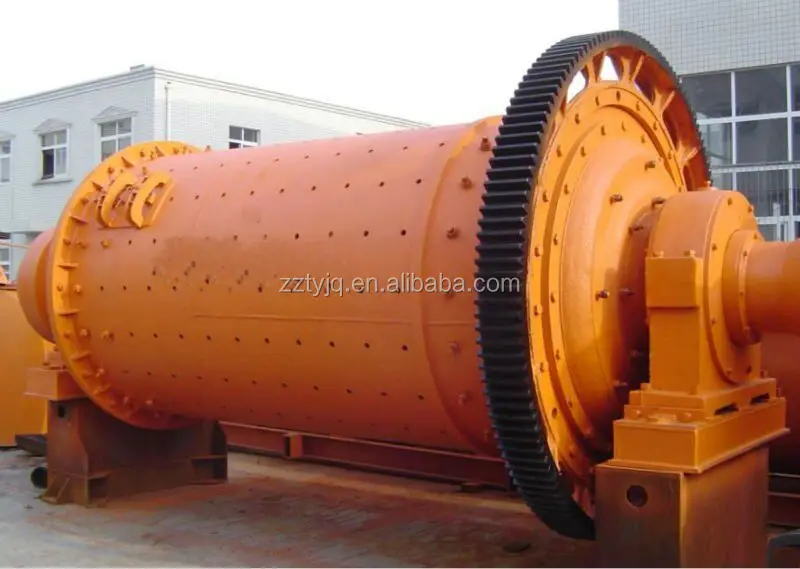

ball mill

Features:

1. Suitable for grinding material with high hardness

2. The shape of the final products is circular

3. No pollution for the powder with ceramic ball

4. Stable performance Easy installation

The capacity and fineness can be adjusted by adjusting the diameter of the ball.

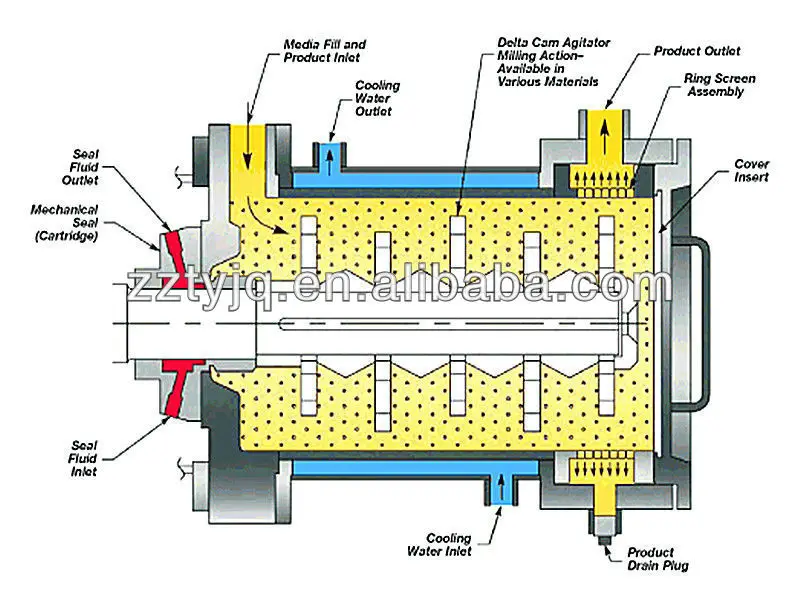

Working priciple:

1. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which has step or waved lining with steel balls in different specifications.

2. Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding.

3. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding.

4. Powder shall be discharged from discharging grating, ending the milling process.

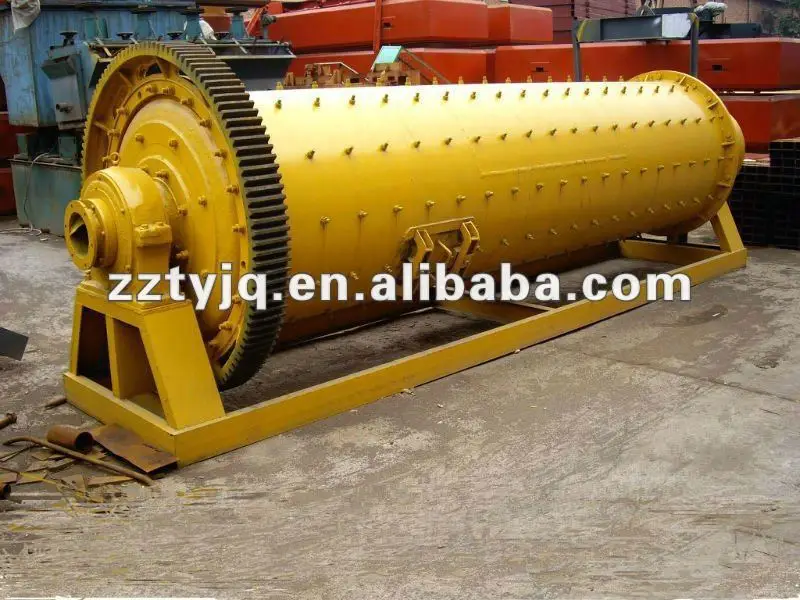

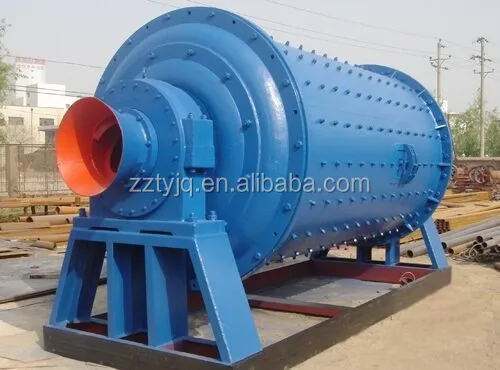

ball mill

Application of ball mill

The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.

Our ball mill can grind ore or other materials, such as copper, gold, zinc, iron, chrome etc various mines which can be grinded either by wet process or by dry process,ball mill machine make a circular process with spiral classifier in ore grinding processing.

Our Company

Introduction of our company

Zhengzhou General Mining Machinery Co.,Ltd was founded in 2004, aiming to serve the need in mining, metallurgy,

construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design,

production detection and marketing.

Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.
