Quick Details

  • Condition: New
  • Type: Ball Mill
  • Product Type: Other
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TYM
  • Model Number: in details as belows
  • Voltage: 380V
  • Power(W): 6-160KW
  • Dimension(L*W*H): Subject
  • Weight: 0.5T-20T
  • Certification: ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • capacity: 0.65-100 t/h
  • motor power: 18.5-430kw
  • max.feeding size: 25mm
  • output size: is adjustable between 0.074-0.4mm
  • payment: T/T L/C
  • quality: high
  • certificate: ISO
  • warranty: 1 year
  • installation: offer tech support

Packaging & Delivery

Packaging Details internetional packing standard, small parts and motor power packed in the wooden boxes
Delivery Time Shipped in 10 days after payment
Product Description

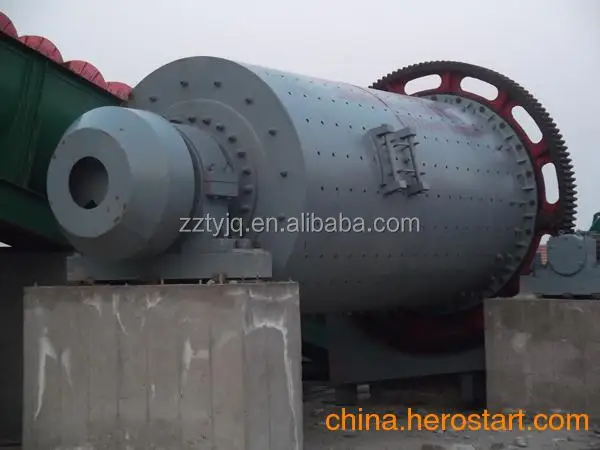

Coal Ball Mill Ball grinding Mill introduction .

Ball grinding  Mill is a critical pulverizing machine after material was broken.This machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole. So when fix, it can be located on a plane surface only once. Use double tier roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. Ball grinding  mill is wiidely used in cement, portland,products, new building materials, refractory material, fertilizer, ferrous and nonferrous metal dressing, and glass ceramics production ndustry for wet and dry grinding of various ores and grindable materials, chemical and other materials. It is classified into wet and dry type. Our ball mill change the way of diischarging material, which can improve the milling of the granule, and make the capacity increase 15~20%.

features

Coal Ball Mill Ball grinding Mill  features .

1) The transmission machinery of grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%

2) Adopt groove-type circular lining plate which is instrumental in increasing contact areas of iron balls and ores, and enhances grinding action and ore lifting capacity and decreases energy consumption.

3) Adopt overall frame, which makes it easy for construction and installation.

4) Large discharge opening, high capacity .

5) Equipped with oil-mist lubrication device which guarantees smooth operation of gears.

6) long servise life, and low consumption..

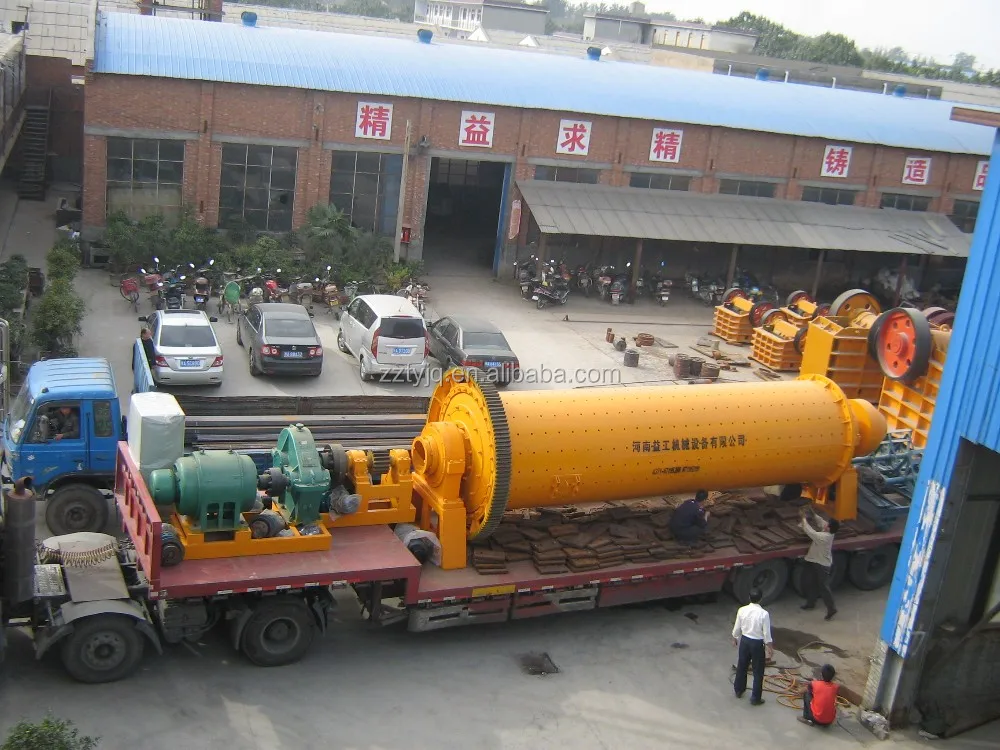

Packing & Delivery

Coal Ball Mill Ball grinding Mill of delivery

Packaging Details: wooden  and standand  container

Delivery Detail: within 7 days

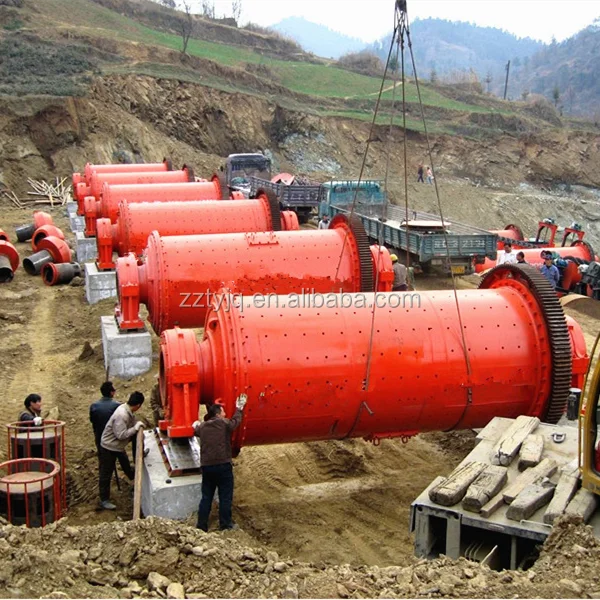

work site
Ball mill tech date
modle
Rotate Speed (r/min)
ball load  (T)
Feeding size (mm)
Discharging size (MM)
Output(t/h)
Motor Power (KW)
900×1800
36~38
1.5
≤20
0.075-0.89
0.65-2
18.5
900×3000
36
2.7
≤20
0.075-0.89
1.1-3.5
22
1200×2400
36
3
≤25
0.075-0.6
1.5-4.8
30
1200×3000
36
3.5
≤25
0.074-0.4
1.6-5
37
1200×4500
32.4
5
≤25
0.074-0.4
1.6-5.8
55
1500×3000
29.7
7.5
≤25
0.074-0.4
2-5
75
1500×4500
27
11
≤25
0.074-0.4
3-6
110
1500×5700
28
12
≤25
0.074-0.4
3.5-6
130
1830×3000
25.4
11
≤25
0.074-0.4
4-10
130
1830×4500
25.4
15
≤25
0.074-0.4
4.5-12
155
1830×6400
24.1
21
≤25
0.074-0.4
6.5-15
210
1830×7000
24.1
23
≤25
0.074-0.4
7.5-17
245
2100×3000
23.7
15
≤25
0.074-0.4
6.5-36
155
2100×4500
23.7
24
≤25
0.074-0.4
8-43
245
2100×7000
23.7
26
≤25
0.074-0.4
8-48
280
2200×4500
21.5
27
≤25
0.074-0.4
9-45
280
2200×6500
21.7
35
≤25
0.074-0.4
14-26
380
2200×7000
21.7
35
≤25
0.074-0.4
15-28
380
2200×7500
21.7
35
≤25
0.074-0.4
15-30
380
2400×3000
21
23
≤25
0.074-0.4
7-50
245
2400×4500
21
30
≤25
0.074-0.4
8.5-60
320
2700×4000
20.7
40
≤25
0.074-0.4
12-80
400
2700×4500
20.7
48
≤25
0.074-0.4
12-90
430
3200×4500
18
65
≤25
0.074-0.4
According to the process condition
800
Product Description

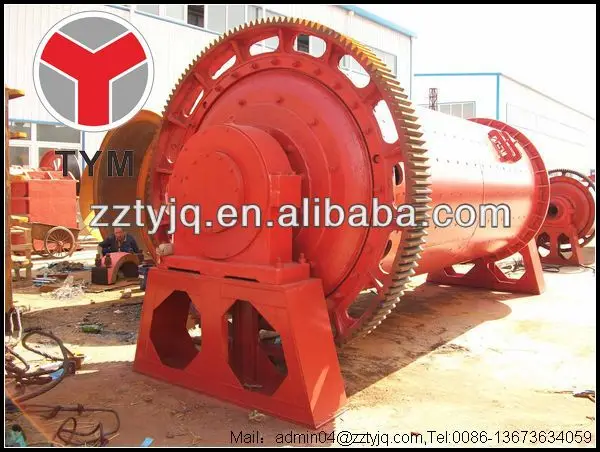

Coal Ball Mill Ball grinding Mill for sale

Detailed Description of Coal Ball Mill Ball grinding Mill :
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.

Specification of Coal Ball Mill Ball grinding Mill :
ball mill is a cylindrical device used to grind (or mix) materials like ores,chemicals, ceramic raw materials and paints. Ball mill rotate around ahorizontal axis, partially filled with the material to be ground plusthe grinding medium. Different materials are used for media, includingceramic balls, flint pebbles and stainless steel balls

Working principle of Coal Ball Mill Ball grinding Mill :
Ball mill,a kind of horizontal drum-type rotating device, is a grate mill withexternal gear and double bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which hasstep or waved lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in thefirst bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. Powder shall be discharged from discharging grating, ending the milling process

Features of Coal Ball Mill Ball grinding Mill :

1) is an efficient tool for grinding many materials into fine powder.

2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine

3) Ball mill is widely used in building material, and chemical industry.

4) There are two ways of grinding: the dry way and the wet way.

5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine

6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.

7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

8) The longer the ball mill runs, the finer the powder will be.

9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

Customer visit

And please tell me your email and phone, I will give you factory price with full specification and you will know all details about machine and discount..
